Power 24hp 1" Keyway Estart Heavy Duty Air FIlter Vertical Shaft Engine CPV680-2 (HDF)

$1,746

Finance available – work out repayments

COX Power 24hp 1" Keyway Estart Heavy Duty Air FIlter Vertical Shaft Engine CPV680-2 The COX Power CPV680-2 engine, designed for lawn mowers, offers a 622cc displacement and 12.5 kW/16.8...

Available by special orderSend us a message or Call (03) 5986 2503 and we'll order one in for you.

  • Set up in-storeReady to mow
  • Serviced hereOur own workshop

CatalogCOX

Tagscoxvertical

COX Power 24hp 1" Keyway Estart Heavy Duty Air FIlter Vertical Shaft Engine CPV680-2 (HDF)

COX Power 24hp 1" Keyway Estart Heavy Duty Air FIlter Vertical Shaft Engine CPV680-2

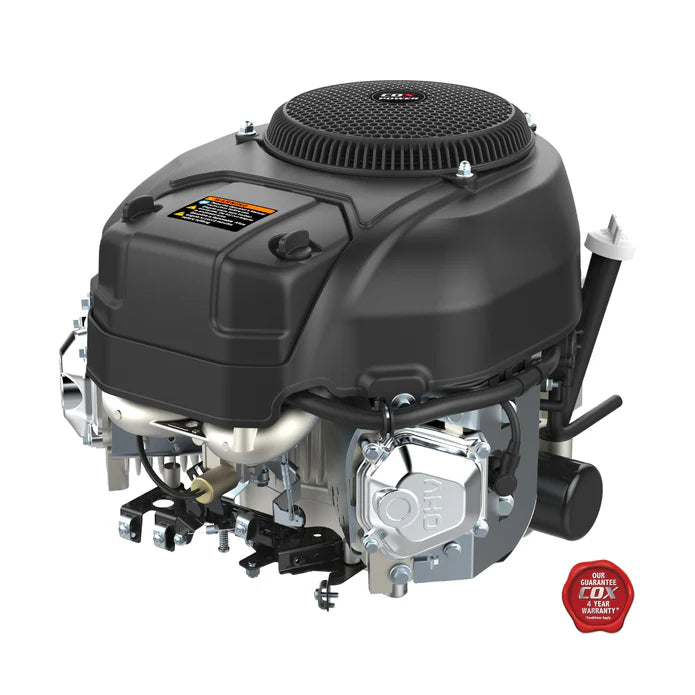

The COX Power CPV680-2 engine, designed for lawn mowers, offers a 622cc displacement and 12.5 kW/16.8 HP power. It features a 96x86 mm cylinder bore and a 1” keyway start shaft, ensuring effective and reliable performance. With a max output speed of 3800 r/min and a torque of 40 N.m, this engine combines efficiency and strength. It includes an E-start system, a 1.8L oil capacity, and is compatible with SAE 10W-30 oil. Measuring 505x440x435 mm and weighing 33 kg, the CPV680-2 complies with CE, EC(V), EPA, and CARB standards. It's an ideal replacement for Honda GXV630R, Briggs & Stratton 25HP Commercial Turf Pro, Vanguard 3867 - 23HP V-Twin Vertical Shaft, and Kohler CV740.
  • Mid-Size Agricultural Equipment: Perfect for small tractors and utility vehicles.
  • Industrial Cleaning Equipment: High torque for effective cleaning.
  • Stationary Workshop Tools: Suitable for powering large workshop tools.
  • Large Portable Generators: Ideal for construction sites and outdoor events.
  • Water Pumps: Efficient for agricultural irrigation and flood control.
Specifications
Model CPV680-2
Cylinder Bore x Stroke (mm) 96 x 86
Displacement (cc) 622
Rated Power (Kw/HP) 12.5/16.8
MAX. Output Speed (r/min) 3800
MAX. Torque (N.m) 40
Idle Speed (r/min) 1750±150
PTO Shaft Size (inches) 1” Keyway start
Starting System E start
Engine Oil Capacity (L) 1.8
Recommended Oil SAE 10W-30
Specific Fuel Consumption Rate At Rated Power (g/kW - h) ≤380
Engine Dimensions (mm) LxWxH 505 x 440 x 435
Net Weight (kg) 33
Certifications CE, EC(V), EPA, CARB
Applications Lawn Mower
Replaces Honda GXV630R, Briggs & Stratton 25HP Commercial Turf Pro, Vanguard 3867 - 23HP V-Twin Vertical Shaft, Kohler CV740

Special order

We'll order it in for you

This item is available only by special order. Send us a message through our contact form or call us on (03) 5986 2503 and we'll confirm price and timing.

When it arrives, it's set up in our Rosebud workshop before it goes home with you, and we look after servicing and warranty work on site.
