Power 26hp 1" Keyway Estart V-twin EFI Horizontal Shaft Engine CPH680-3EI

$2,300

Finance available – work out repayments

COX Power 26hp 1" Keyway Estart V-twin EFI Horizontal Shaft Engine CPH680-3EI The COX Power CPH680-3EI is a Fuel Injected V-Twin Cylinder petrol engine with a 679cc displacement, it delivers...

Available by special orderSend us a message or Call (03) 5986 2503 and we'll order one in for you.

  • Set up in-storeReady to mow
  • Serviced hereOur own workshop

CatalogCOX

Tagscoxhorizontal

COX Power 26hp 1" Keyway Estart V-twin EFI Horizontal Shaft Engine CPH680-3EI

COX Power 26hp 1" Keyway Estart V-twin EFI Horizontal Shaft Engine CPH680-3EI

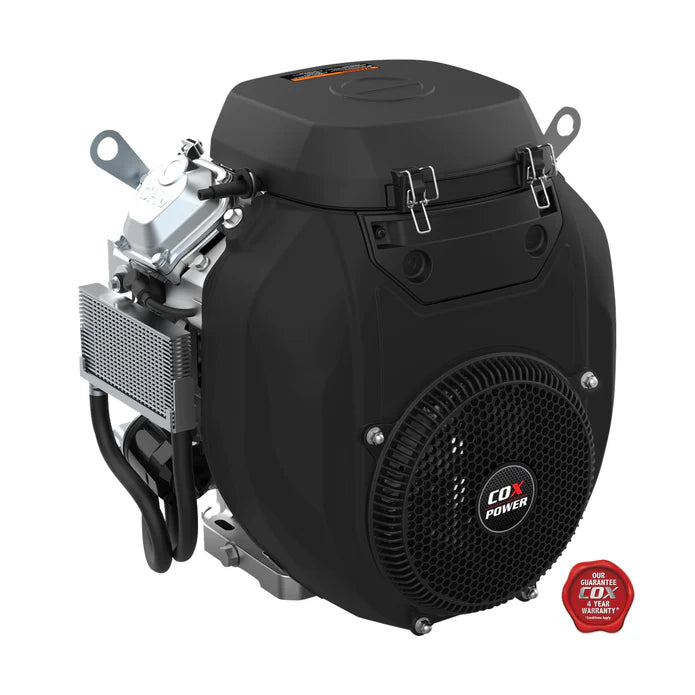

The COX Power CPH680-3EI is a Fuel Injected V-Twin Cylinder petrol engine with a 679cc displacement, it delivers an impressive 14.5 kW / 26 HP @ 3,600 rpm.

This V -Twin Petrol engine is designed with Cast Iron cylinder liners and Fuel Injection. Each cylinder has a bore and stroke of 78 x 71 mm.

It has an 1” inch diameter straight Output Shaft with a 1/4" inch straight cut keyway, output shaft rotation is Anti-Clockwise (when looking at the back of the engine)

The CPH 680-3 is crafted for efficient and powerful performance across various applications. (Please see below for some examples)

Achieving a maximum output speed of 3,900 revs/min and a maximum torque of 42 N.m @ 3,600 RPM, it stands out for its reliability in industrial, construction, and commercial tasks.

The engine includes Recoil, Electric-start and fuel Injection systems, it has a 1.5L sump oil capacity and an integrated engine oil cooler.
The recommended engine oil for Most Australian Conditions is SAE 10W-30.

The CPH680-3 also meets CE, EPA, EC(V), and CARB emission standards.

Packed dimensions are 550 x 550 x 530 mm and a weight of 43.5 kg,
This V-Twin is an effective engine replacement: for models like,
Honda GX630 / GX690 / iGX700 / iGX800,
Briggs & Stratton 22.5 PXI Pro Series,
Vanguard 3864 / 38E3, and
Kohler CH730 / CH740 / CH752.
Applications:
  • Advanced Agricultural Machinery: Ideal for large-scale farming equipment.
  • Major Construction Tools: Suitable for significant construction machinery.
  • Professional Landscaping Equipment: Perfect for extensive landscaping work.
  • Industrial Generators: Reliable for large generators in various scenarios.
  • High-Capacity Pressure Washers: Effective for intensive cleaning operations.
Specifications
Model CPV680-3
Cylinder Bore x Stroke (mm) 78 x 71
Displacement (cc) 679
Compression Ratio 8.5:1
Rated Power (Kw/HP) 14.5 / 26 @ 3,600 rpm
MAX. Output Speed (r/min) 3,900
Direction of Rotation Viewed from Shaft End  Anti-Clockwise
MAX. Torque (N.m) 45 @ 2,600 rpm
Idle speed (r/min) 1750±150
PTO Shaft Size (inches) 1” Keyway shaft
Starting System Recoil / Electric Start
Fuel Supply to Engine   Fuel Injection
Engine Oil Capacity (L) 1.5
Recommended Oil SAE 10W-30
MAX. Fuel Tank capacity (L) Remote Fuel Tank Required
Fuel Consumption At Rated Power (g/kW/h) ≤370
Engine Dimensions (mm) L x W x H 428 x 464 x 456
Net Weight (kg) 43.5
Emissions Certifications CE, EPA, EC(V), CARB
Replaces Honda  GX630 / GX690 / iGX700 / iGX800
Replaces Briggs & Stratton 22.5 PXI Pro Series
Replaces Kohler CH730 / CH740 / CH752
Replaces Vanguard 3864 / 38E3
