COX

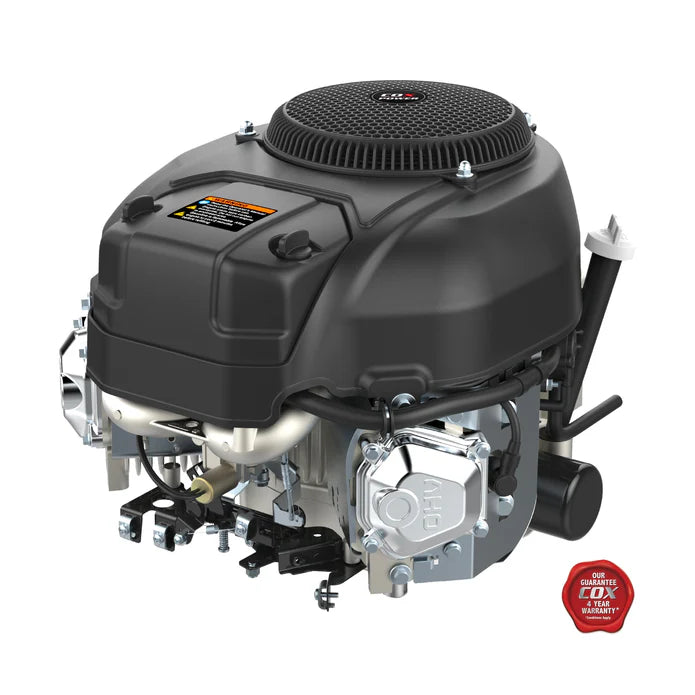

Power 24hp 1" Keyway Estart V-Twin Vertical Shaft Engine CPV680-1
Finance available – work out repayments
COX Power 24hp 1" Keyway Estart V-Twin Vertical Shaft Engine CPV680-1 The COX Power CPV680-1 is a V-Twin cylinder petrol engine that is specifically engineered for lawn mowers. It has...
Available by special orderSend us a message or Call (03) 5986 2503 and we'll order one in for you.
- Set up in-storeReady to mow
- Serviced hereOur own workshop
COX Power 24hp 1" Keyway Estart V-Twin Vertical Shaft Engine CPV680-1
COX Power 24hp 1" Keyway Estart V-Twin Vertical Shaft Engine CPV680-1
- Large Agricultural Equipment: Powers substantial farm vehicles and tractors.
- Industrial Pressure Washers: High torque for heavy-duty cleaning.
- Stationary Industrial Tools: Suitable for powering large industrial tools.
- High-Capacity Portable Generators: Ideal for large-scale power needs.
| Specifications | |
|---|---|
| Model | CPV680-1 |
| Twin Cylinder Bore x Stroke (mm) | 78 X 71 |
| Displacement (cc) | 679 |
| Rated Power (Kw/HP) | 16.5/22.5 |
| MAX. Output Speed (r/min) | 3,900 |
| MAX. Torque (Nm) | 46 @ 2,700 rpm |
| Idle Speed (r/min) | 1,700±100 |
| PTO Shaft Size (inches) | 1” Straight Keyed |
| Starting System | Electric start |
| Engine Oil Capacity (Lt) | 2 |
| Recommended Oil | SAE 10W-30 |
| Fuel Consumption @ Rated Power (g/kW/h) | ≤370 |
| Engine Dimensions (mm) L x W x H | 670 x 500 x 585 |
| Net Weight (kg) | 49.6 |
| Emission Certifications | CE, Euro V. EPA, CARB |
| Applications | Lawn Mower |
| Replaces | Honda GXV630R |
| Replaces | Briggs & Stratton 25HP Commercial Turf Pro |
| Replaces | Kohler CV740 |
| Replaces | Vanguard 3867-23HP V-Twin Vertical Shaft |
Special order
We'll order it in for you
This item is available only by special order. Send us a message through our contact form or call us on (03) 5986 2503 and we'll confirm price and timing.
When it arrives, it's set up in our Rosebud workshop before it goes home with you, and we look after servicing and warranty work on site.
Special order
Want a Power 24hp 1" Keyway Estart V-Twin Vertical Shaft Engine CPV680-1? We'll order it in
Talk to Will and the team at Unit 1/8 Merino Street, Rosebud. We'll confirm price and timing, and talk you through finance with no pressure.
