Husqvarna
EPOS™ RS1 Reference Station
Finance available – work out repayments

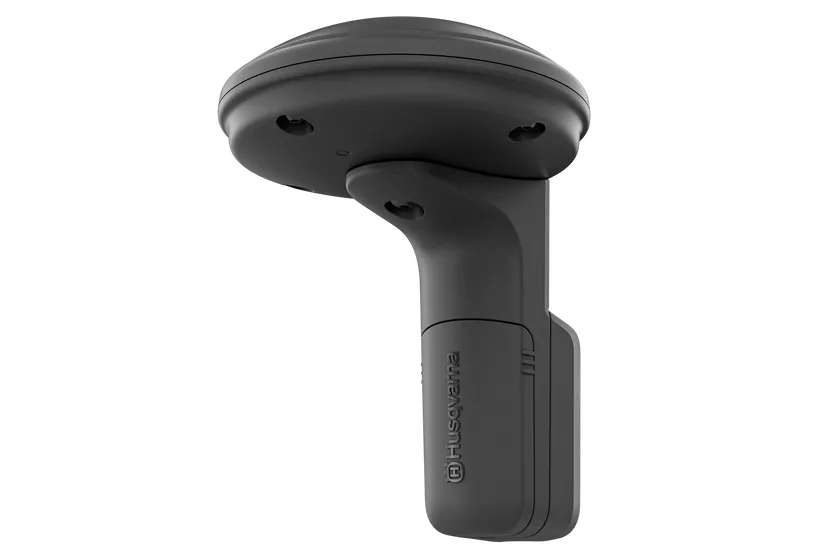

Husqvarna EPOS™ RS1 Reference Station A reference station for the satellite-based EPOS™ technology that enables wire free boundaries for robotic lawn mowers, resulting in completely customisable lawn maintenance. The station...
- Set up in-storeReady to mow
- Husqvarna Elite dealerAuthorised sales
- Serviced hereOur own workshop
Husqvarna EPOS™ RS1 Reference Station
Husqvarna EPOS™ RS1 Reference Station
| Feature | Details |
|---|---|
| Wire-Free Boundaries & Coverage | |
| Wire-free installation | Enables virtual boundaries and no-mow zones via Automower® EPOS™. |
| Working radius | Up to 100 m from the RS1 station. |
| Correction source | Local RTK correction from the RS1. Recommended when full-lawn Wi-Fi/cellular coverage isn’t available. |
| Compatibility | |
| Fits Automower® models | 305E NERA*, 310E NERA*, 320 NERA*, 405XE NERA*, 410XE NERA*, 430X NERA*, 450X NERA*, 435X AWD EPOS. *NERA models require the EPOS™ Plug-in accessory. |
| Install & Reliability | |

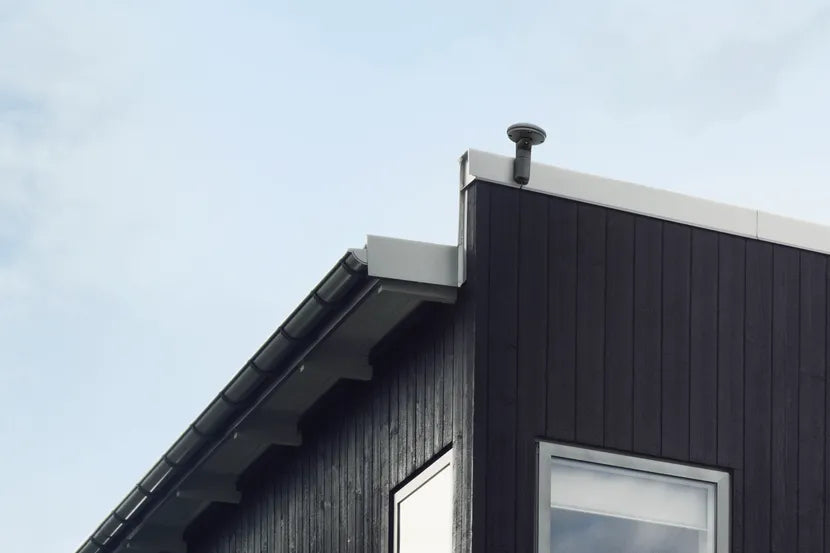

| Mounting | Install ≥2 m high with ≥135° clear sky view; on a fixed wall/post (Ø 27–36 mm). |
| Weatherproofing | RS1 unit IPX5; power supply IP44. |
| Operating temp | −20 °C to 45 °C. |
| Status LEDs | Multi-colour indicators for startup, operation, error, update; repeater mode supported. |
| Category | Specification |
|---|---|
| Dimensions & Power | |
| Size (L × W × H) | 17 × 16 × 22 cm |
| Weight | 0.5 kg |
| Power supply (included) | Input 100–240 V AC; Output 28 V DC, 1.3 A |
| Power consumption | 2.8 W |
| Low-voltage cable | 20 m |
| Radio & Connectivity | |
| Bluetooth® (service) | 2.400–2.4835 GHz, 8 dBm |
| Regional SRD bands | AU/NZ: 915–928 MHz (13 dBm) |
| Installation Notes | |
| Coverage radius | Up to 100 m from RS1 |
| Min. install height | ≥ 2 m; ≥ 135° sky view; rigid mount |
| Recommended use case | Use RS1 when full-lawn Wi-Fi/cellular isn’t available for EPOS Cloud corrections |
Sold and serviced in Rosebud
Set up and ready to go
Every machine is assembled, fuelled and checked in our Rosebud workshop before it goes home with you. Pick it up in store or ask us about delivery around the Mornington Peninsula.
We look after servicing and warranty work on site. Questions? Call us on (03) 5986 2503.
In store now
Come and see the EPOS™ RS1 Reference Station in Rosebud
Drop into Unit 1/8 Merino Street, Rosebud. We'll show you around it, set it up in our workshop and talk you through finance with no pressure.
