The TYM T413 Cabin HST Utility Tractor is a robust and versatile machine designed for larger properties, small farms, and heavy-duty tasks. Powered by a reliable 41hp diesel engine, this tractor offers impressive strength and performance for demanding jobs like hauling, digging, and mowing. The 4WD capability ensures excellent traction on rough terrains, while the hydrostatic transmission allows for smooth, precise control, making it easy to operate even during extended use. With a spacious operator platform and ergonomic controls, the T413 is built for comfort and efficiency. Equipped with a rear PTO system, it supports a wide range of attachments, making it ideal for various agricultural, landscaping, and maintenance tasks. Durable, powerful, and highly adaptable, the TYM T413 HST Utility Tractor is an essential tool for any large-scale project.
Air-conditioned cabin with heatingĀ
FEATURES OF THE TYM 'T413' FRONT END LOADER |
|
CONSTRUCTION |
|
|
|
|
|
|
|
|
|
|
FEATURES |
|
|
|
|
|
|
|
ATTACHMENT |
|
|
|
|
|
|
|
CONTROLS |
|
|
|
|
 |
|
Specifications
| Engine Type | Yanmar |
| Number of Cylinders | 3 |
| Engine Power (hp/kW) | 38.4/28.6 |
| Engine Torque (Nm) | 142.7 |
| Transmission Type | Hydrostatic |
| Number of Transmission Ranges | 3 |
| Side-by-side Forward / Reverse Transmission Pedals |  |
| Cruise Control | |
| Maximum Speed (km/h) | 27 |
| PTO Speed (rpm) | 540 |
| Independent Push Button PTO engagement | |
| 3-point Linkage Lift Capacity (kg) | 1200 |
| Number of Hydraulic Remotes | 1 set |
| Integrated Joystick Control for Front-end Loader | |
| Weight - Tractor Only (kg) | 1390 |
Ā
Specifications Of Loader
| Loader model | TX3500H |
| Tractor models | T413 HST ROPS,Ā T413 CAB |
| A. Maximum lift height (mm) | 2,597 |
| B. Clearance with attachment level (mm) | 2,332 |
| C. Clearance with attachment dumped - 45 degrees (mm) | 1,864 |
| D. Reach at maximum height - 45 degrees (mm) | 554 |
| E. Maximum dump angle (degrees) | 42 |
| F. Reach with attachment on ground (mm) | 1,792 |
| G. Attachment rollback angle (degrees) | 35 |
| H. Digging depth below grade (mm) | 111 |
| J. Overall height in carry position (mm) | 1,550 |
| L. Depth of attachment - to back of inner shell (mm) | 579 |
| M. Height of attachment (mm) | 563 |
| N. Depth of attachment - to pivot pin (mm) | 801 |
| Lift capacity to full height of pivot pins (kg) | 926 |
| Breakout force at ground level, pivot pins (kg) | 1,556 |
| Rated operating load - (counter weight on 3PL) (kg) | 450 (350) |
Ā

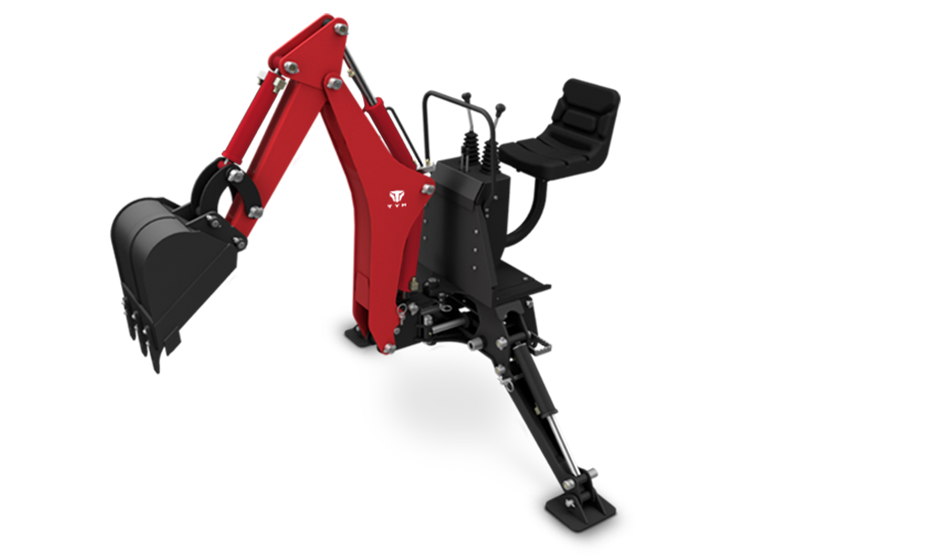

Specifications Of Backhoe
|
Digging depth
|
2317 mm | 91.2 in. |
|
Loading height
|
2286 mm | 90 in. |
|
Backhoe reach
|
3140 mm | 123.6 in. |
|
Max. leveling angle
|
10Ā°
|
|
Angle of departure
|
21Ā°
|
|
Backhoe reach
|
3140 mm | 123.6 in. |
|
Swing angle
|
180Ā°
|
|
Bucket rotation
|
149Ā°
|
|
Stabilizer spread (lowered position)
|
2256 mm | 88.8 in. |
|
Stabilizer spread (raised position)
|
1737 mm | 68.4 in. |
|
Transport overhang
|
1189 mm | 46.8 in. |
|
Transport height (max.)
|
2164 mm | 85.2 in. |
|
Compatible bucket sizes
|
9" backhoe bucket
|
|
Compatible bucket sizes
|
12" backhoe bucket
|
|
Compatible bucket sizes
|
16" backhoe bucket
|
|
Compatible bucket sizes
|
18" backhoe bucket
|
|
Compatible bucket sizes
|
24ā backhoe bucket
|
Features
- Powered byĀ 38.4hp YanmarĀ naturally aspirated 3 cylinder water-cooled Diesel engine
- Yanmar DieselĀ is a global engine manufacturer of quality, giving you the confidence in reliability and after-sales support
- Engine certified to meet the stringent Tier III engine and noise emission standards
- 1642cc engine,Ā resulting inĀ high torqueĀ for serious work
- Dual dry element air cleaner for Australia's dusty conditions
- 34 litre fuel tank capacity with easy access at rear side will provide for many working hours between refueling
- The tractor weight of 1565kg (Cabin version) is a reflection of theĀ heavy duty transmission, driveline and axles.Ā The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
- The Hydrostatic drive transmission is controlled by two side by side pedals for easy forward and reverse directional changes
- The new Auto Throttle feature links the HST pedals to the engine throttle to synchronise the tractorās speed and engine RPM. This simplifies operation, helps increase productivity and reduces fuel consumption.
- 3 Ranges with range lever located to operator's right
- 0-27km/h maximum speed
- The heavy duty front axle performs in tough working conditions and handles loads with ease
- A long wheel base and wide stance increases stability in all conditions
- Rear axle with diff-lock for difficult traction situations
- 4WD and the diff -lock provides better traction, control and performance
- 4WD mode is controlled by a lever on the left hand side of the operator
- Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations
- Control for the linkage and hydraulic remotes are on the right-hand side
- The 3-point linkage with position control
- Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements
- 1 set of double-acting hydraulic remotes
- Category 1 3-point linkage with 1200kg lifting capacity gives the tractor great versatility and range of applications
- Adjustable lower link arms
- The PTO driveline is a simple and direct design for high efficiency and power
- The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation
- Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage
- Ergonomic design with easy to reach controls
- Easy to read instrument panel
- Titlable steering wheel
- Combination switch controls lights and indicators
- Digital hour metre display
- PTO On/Off Switch
- Cruise control
- Tiltable steering wheel
- Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
- Wide distance between rear mudguard and dash panel provides easy access on and off the tractor
- Uncluttered flat floor without trip hazards is the largest surface area in its class
- Rubber floor mat reduces noise and provides an easy to maintain surface
- Adjustable suspension seat for comfort
- Easy access to all maintenance areas with pop-up 1 piece bonnet
- Level lift front-end loader ideal for materials handling and utility work around the farm
- Choice of agricultural, industrial or turf tyres
