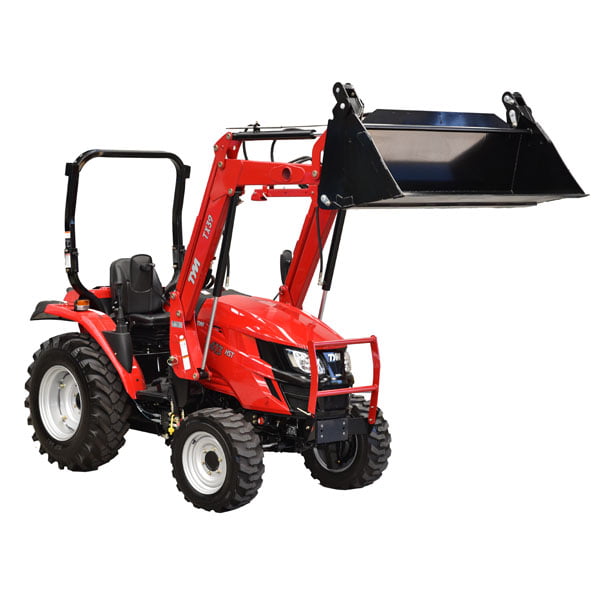

TYM T413 HST Tractor 4WD ROPS with Front End Loader, 4-in-1 Bucket

The TYM T413 HST Utility Tractor is a robust and versatile machine designed for larger properties, small farms, and heavy-duty tasks. Powered by a reliable 41hp diesel engine, this tractor offers impressive strength and performance for demanding jobs like hauling, digging, and mowing. The 4WD capability ensures excellent traction on rough terrains, while the hydrostatic transmission allows for smooth, precise control, making it easy to operate even during extended use. With a spacious operator platform and ergonomic controls, the T413 is built for comfort and efficiency. Equipped with a rear PTO system, it supports a wide range of attachments, making it ideal for various agricultural, landscaping, and maintenance tasks. Durable, powerful, and highly adaptable, the TYM T413 HST Utility Tractor is an essential tool for any large-scale project.

FEATURES OF THE TYM 'T413' FRONT END LOADER

CONSTRUCTION

T413 Front End Loader Construction
  • Loader is a mechanical level lift design
  • The arms are made from tappered segments providing maximum strength with optimal pin weight
  • Pins are plated and greasable

T413 Front End Loader Quick Detach
  • The loader is quick-detach to the tractor via simple quick release pins
  • Integrated stand is provided for loader storage on hard surfaces

T503 Front End Loader Rail
  • The loader mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material

FEATURES

T413 Front End Loader Level Indicator Gauge
  • Bucket level indicator
  • Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground

T413 Front End Loader Grill Guard
  • Grille guard protection frame

ATTACHMENT

T503 Front End Loader Implement Hitch
  • Implement attached to the loader is via a Euro-Hitch connection allowing easy attachment of other tools and implements to the loader
  • Easy connection and disconnection of attachments from the loader via a single lever

T413 Front End Loader 4 in 1 Bucket
  • The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
  • The 4-in-1 bucket needs a third hydraulic function and this is standard on the loader controls

CONTROLS

T413 Front End Loader Joystick
  • Loader is fitted with integrated joystick controls for the raise/lower and crowd/dump functions
  • The integrated joystick allows unobstructed access from either side of the tractor
  • The 4-in-1 bucket is controlled via a trigger button on the joystick to alleviate fatigue compared to thumb operated style controls
  • Joystick has a safety lock to prevent inadvertant operation
TYM Loader Specifications Diagram

Download Brochure here

Specifications

Engine Type Yanmar
Number of Cylinders 3
Engine Power (hp/kW) 38.4/28.6
Engine Torque (Nm) 142.7
Transmission Type Hydrostatic
Number of Transmission Ranges 3
Side-by-side Forward / Reverse Transmission Pedals Tick
Cruise Control Tick
Maximum Speed (km/h) 27
PTO Speed (rpm) 540
Independent Push Button PTO engagement Tick
3-point Linkage Lift Capacity (kg) 1200
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 1390



Specifications Of Loader

Loader model TX3500H
Tractor models T413 HST ROPS, T413 CAB
A. Maximum lift height (mm) 2,597
B. Clearance with attachment level (mm) 2,332
C. Clearance with attachment dumped - 45 degrees (mm) 1,864
D. Reach at maximum height - 45 degrees (mm) 554
E. Maximum dump angle (degrees) 42
F. Reach with attachment on ground (mm) 1,792
G. Attachment rollback angle (degrees) 35
H. Digging depth below grade (mm) 111
J. Overall height in carry position (mm) 1,550
L. Depth of attachment - to back of inner shell (mm) 579
M. Height of attachment (mm) 563
N. Depth of attachment - to pivot pin (mm) 801
Lift capacity to full height of pivot pins (kg) 926
Breakout force at ground level, pivot pins (kg) 1,556
Rated operating load - (counter weight on 3PL) (kg) 450 (350)
