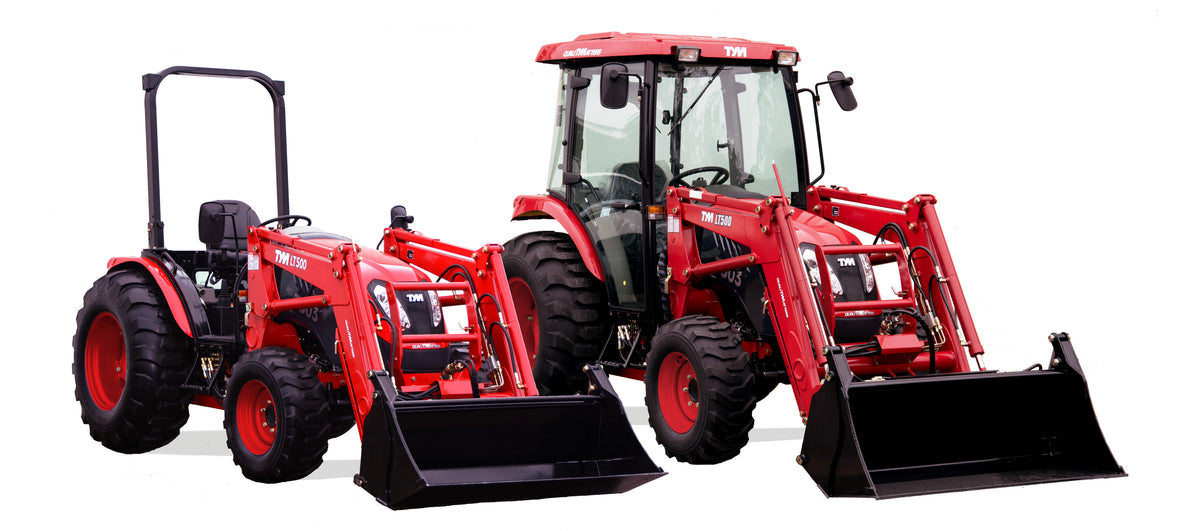

TYM T503 Manual Tractor 16/16 4WD ROPS - Backhoe, Front End Loader with 4-in-1 Bucket
TYM T503 Manual 16/16 4wd ROPS Tractor

TYM

T503 Manual Tractor 16/16 4WD ROPS - Backhoe, Front End Loader with 4-in-1 Bucket

$61,985

Finance available – work out repayments

The TYM T503 4WD ROPS is a high-performance utility tractor built to handle demanding agricultural, landscaping, and commercial tasks. Powered by a 50hp diesel engine, it offers exceptional strength and...

Call (03) 5986 2503
  • Set up in-storeReady to mow
  • Serviced hereOur own workshop

CatalogTYM T503 Manual 16/16 4wd ROPS Tractor

Tagst503, t503manual

TYM T503 Manual Tractor 16/16 4WD ROPS - Backhoe, Front End Loader with 4-in-1 Bucket

The TYM T503 4WD ROPS is a high-performance utility tractor built to handle demanding agricultural, landscaping, and commercial tasks. Powered by a 50hp diesel engine, it offers exceptional strength and reliability for jobs like plowing, mowing, and hauling. Its 4WD capability ensures superior traction across challenging terrains, while the ROPS (Roll Over Protection Structure) enhances operator safety during tough conditions.

Key Features:

  • 50hp Diesel Engine: Delivers robust power for heavy-duty tasks.
  • 4WD Capability: Provides superior traction on rough, uneven terrain.
  • ROPS (Roll Over Protection Structure): Ensures added safety for operators.
  • Spacious Operator Platform: Designed for comfort during long hours of work.
  • PTO System: Compatible with a variety of attachments for added versatility.
  • Durable Build: Engineered to handle tough environments and heavy loads.

With its powerful engine, versatile attachments, and user-friendly design, the TYM T503 4WD ROPS is the ideal choice for those looking for reliability, comfort, and performance in a utility tractor.

FEATURES OF THE TYM 'T503' FRONT END LOADER

CONSTRUCTION

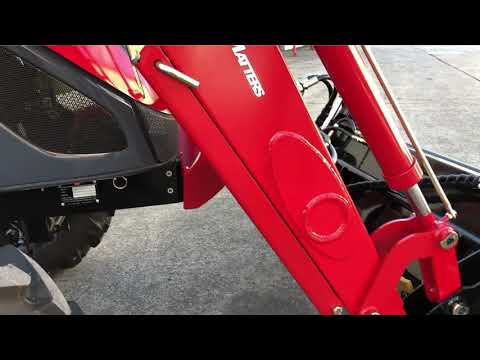

T503 Front End Loader Level Lift
  • Loader is a mechanical level lift design
  • The arms are made from tappered segments providing maximum strength with optimal pin weight
  • Pins are plated and greasable

T503 Front End Loader Detach
  • The loader is quick-detach to the tractor via simple pins
  • Integrated stand is provided for loader storage on hard surfaces

T503 Front End Loader Rail
  • The loader mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material

FEATURES

T503 Front End Loader Level Indicator Gauge
  • Bucket level indicator
  • Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground

T503 Front End Loader Grill Guard
  • Grille guard protection frame

ATTACHMENT

T503 Front End Loader Implement Hitch
  • Implement attached to the loader is via a Euro-Hitch style connection allowing easy attachment of other tools and implements to the loader
  • Easy connection and disconnection of attachment from the loader via a single lever

T503 Front End Loader 4 in 1 Bucket
  • The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
  • The 4-in-1 bucket needs a third hydraulic function and this is standard on the loader controls

CONTROLS

T503 Front End Loader Joystick
  • Loader is fitted with integrated joystick controls for the raise/lower and crowd/dump functions
  • The 4-in-1 bucket is controlled via a trigger button on the joystick to alleviate fatigue compared to thumb operated style controls
  • Joystick has a safety lock to prevent inadvertant operation
TYM Loader Specifications Diagram



Download Brochure here

Loader Specifications

Engine Type Perkins
Number of Cylinders 4
Engine Power (hp/kW) 50 / 37
Engine Torque (Nm) 142.7
Transmission Type Manual
Number of Transmission Speeds 16
Forward / Reverse Shuttle Transmission Tick
Number Speed Ranges 4
Maximum Speed (km/h) 31.7
PTO Speed (rpm) 540
Independent Push Button PTO engagement Tick
3-point Linkage Lift Capacity (kg) 1503
Number of Hydraulic Remotes 2 sets
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 1710



Loader model LT500
Tractor models T503 ROPS, T503 CAB,
T503 HST ROPS, T503 HST CAB
A. Maximum lift height (mm) 2,800
B. Clearance with attachment level (mm) 2,547
C. Clearance with attachment dumped - 45 degrees (mm) 2,074
D. Reach at maximum height - 45 degrees (mm) 519
E. Maximum dump angle (degrees) 70
F. Reach with attachment on ground (mm) 1,817
G. Attachment rollback angle (degrees) 48
H. Digging depth below grade (mm) 75
J. Overall height in carry position (mm) 1,584
L. Depth of attachment - to back of inner shell (mm) 540
M. Height of attachment (mm) 740
N. Depth of attachment - to pivot pin (mm) 774
Lift capacity to full height of pivot pins (kg) 966
Breakout force at ground level, pivot pins (kg) 2,002
Rated operating load - counter weight on 3PL (kg) 500

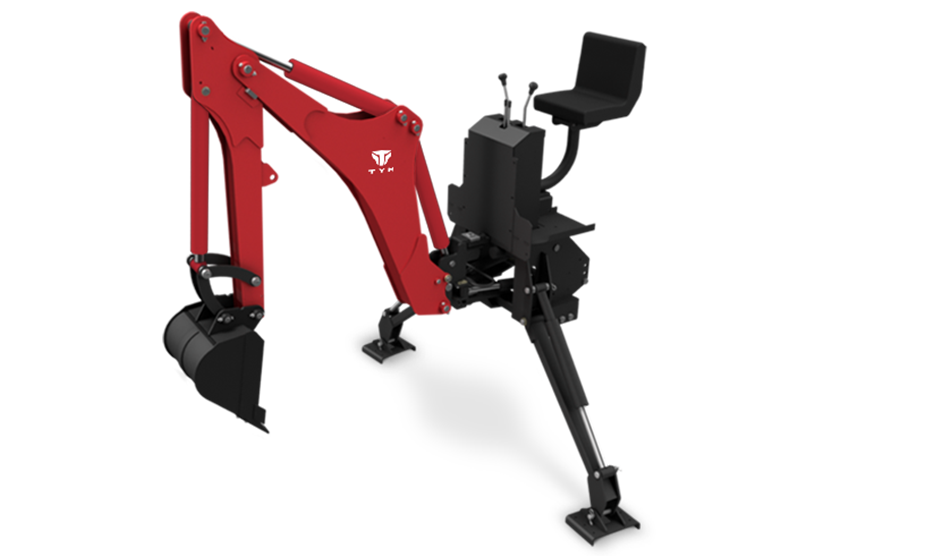

Backhoe Model BY85
Digging depth
 2621 mm | 103.2 in.
Loading height
 2347 mm | 92.4 in.
Backhoe reach
 3414 mm | 134.4 in.
Digging depth
 2621 mm | 103.2 in.
Loading height
 2347 mm | 92.4 in.
Max. leveling angle
10°
Angle of departure
21°
Backhoe reach
 3414 mm | 134.4 in.
Swing angle
180°
Bucket rotation
151°
Stabilizer spread (lowered position)
 2256 mm | 88.8 in.
Stabilizer spread (raised position)
 1737 mm | 68.4 in.
Transport overhang
 1280 mm | 50.4 in.
Transport height (max.)
 2317 mm | 91.2 in.
Compatible bucket sizes
9" backhoe bucket
Compatible bucket sizes
12" backhoe bucket
Compatible bucket sizes
16" backhoe bucket
Compatible bucket sizes
18" backhoe bucket
Compatible bucket sizes
24” backhoe bucket
Compatible bucket sizes
36" backhoe bucket
