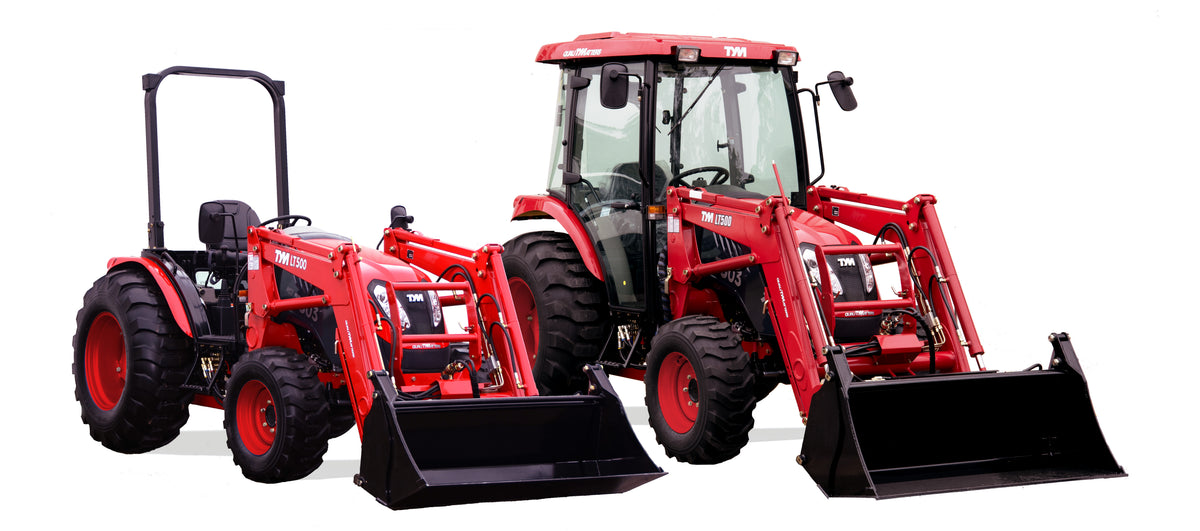

TYM T503 HST 4WD ROPS Tractor- Backhoe,Front End Loader with 4-in-1 Bucket
TYM T503 HST 4wd Tractor

TYM

T503 HST 4WD ROPS Tractor- Backhoe,Front End Loader with 4-in-1 Bucket

$66,451

Finance available – work out repayments

The TYM T503 HST 4WD ROPS Utility Tractor is a powerful, versatile machine designed to take on a wide range of agricultural, landscaping, and commercial tasks with ease. Powered by...

Call (03) 5986 2503
  • Set up in-storeReady to mow
  • Serviced hereOur own workshop

CatalogTYM T503 HST 4wd Tractor

Tagst503, t503hst

TYM T503 HST 4WD ROPS Tractor- Backhoe,Front End Loader with 4-in-1 Bucket

The TYM T503 HST 4WD ROPS Utility Tractor is a powerful, versatile machine designed to take on a wide range of agricultural, landscaping, and commercial tasks with ease. Powered by a 50hp diesel engine, this tractor delivers reliable performance for jobs like plowing, mowing, and hauling. The 4WD capability ensures excellent traction on tough terrains, while the hydrostatic transmission (HST) allows for smooth and easy operation, making it perfect for both professionals and property owners. Equipped with ROPS (Roll Over Protection Structure), it provides enhanced safety during demanding tasks.

Key Features:

  • 50hp Diesel Engine: Offers powerful performance for heavy-duty tasks and efficient operation.
  • Hydrostatic Transmission (HST): Provides smooth and easy operation, ideal for tasks that require frequent speed adjustments.
  • 4WD Capability: Ensures superior traction and stability on challenging terrains.
  • ROPS (Roll Over Protection Structure): Enhances operator safety during demanding jobs.
  • PTO System: Supports various attachments for greater versatility, including mowers, tillers, and loaders.
  • Durable Construction: Built to withstand tough conditions and provide long-lasting service.

The TYM T503 HST 4WD ROPS Utility Tractor combines power, precision, and safety, making it a perfect solution for those who need a reliable, versatile tractor for both light and heavy-duty work.

FEATURES OF THE TYM 'T503' FRONT END LOADER

CONSTRUCTION

T503 Front End Loader Level Lift
  • Loader is a mechanical level lift design
  • The arms are made from tappered segments providing maximum strength with optimal pin weight
  • Pins are plated and greasable

T503 Front End Loader Detach
  • The loader is quick-detach to the tractor via simple pins
  • Integrated stand is provided for loader storage on hard surfaces

T503 Front End Loader Rail
  • The loader mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material

FEATURES

T503 Front End Loader Level Indicator Gauge
  • Bucket level indicator
  • Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground

T503 Front End Loader Grill Guard
  • Grille guard protection frame

ATTACHMENT

T503 Front End Loader Implement Hitch
  • Implement attached to the loader is via a Euro-Hitch style connection allowing easy attachment of other tools and implements to the loader
  • Easy connection and disconnection of attachment from the loader via a single lever

T503 Front End Loader 4 in 1 Bucket
  • The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
  • The 4-in-1 bucket needs a third hydraulic function and this is standard on the loader controls

CONTROLS

T503 Front End Loader Joystick
  • Loader is fitted with integrated joystick controls for the raise/lower and crowd/dump functions
  • The 4-in-1 bucket is controlled via a trigger button on the joystick to alleviate fatigue compared to thumb operated style controls
  • Joystick has a safety lock to prevent inadvertant operation
TYM Loader Specifications Diagram

Specifications and design are subject to change without notice. These specifications are a general guide.

Download Brochure here

Specifications

Engine Type Perkins
Number of Cylinders 4
Engine Power (hp/kW) 50 / 37
Engine Torque (Nm) 142.7
Transmission Type HST
Number Speed Ranges 4
Maximum Speed (km/h) 31.7
PTO Speed (rpm) 540
Independent Push Button PTO engagement Tick
3-point Linkage Lift Capacity (kg) 1503
Number of Hydraulic Remotes 2 sets
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 1710



Loader model LT500
Tractor models T503 ROPS, T503 CAB,
T503 HST ROPS, T503 HST CAB
A. Maximum lift height (mm) 2,800
B. Clearance with attachment level (mm) 2,547
C. Clearance with attachment dumped - 45 degrees (mm) 2,074
D. Reach at maximum height - 45 degrees (mm) 519
E. Maximum dump angle (degrees) 70
F. Reach with attachment on ground (mm) 1,817
G. Attachment rollback angle (degrees) 48
H. Digging depth below grade (mm) 75
J. Overall height in carry position (mm) 1,584
L. Depth of attachment - to back of inner shell (mm) 540
M. Height of attachment (mm) 740
N. Depth of attachment - to pivot pin (mm) 774
Lift capacity to full height of pivot pins (kg) 966
Breakout force at ground level, pivot pins (kg) 2,002
Rated operating load - counter weight on 3PL (kg) 500

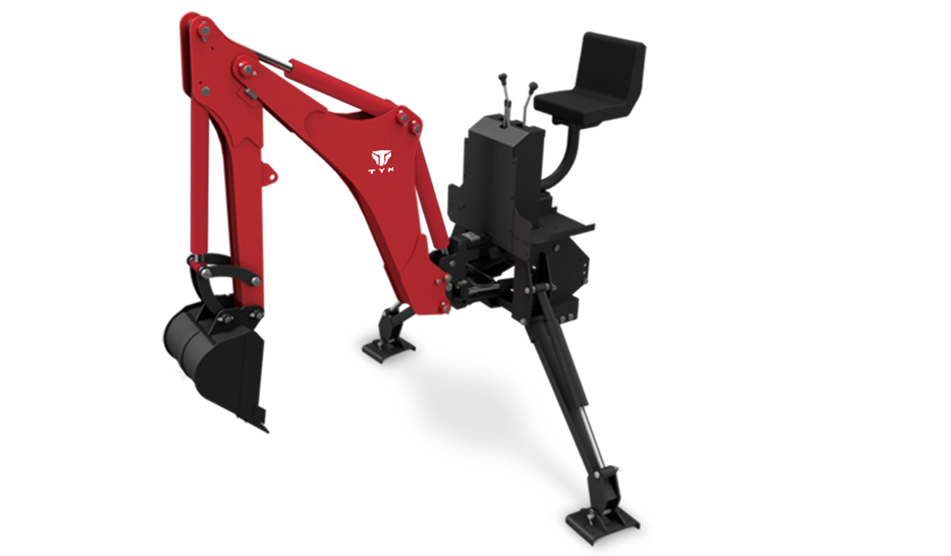

Backhoe Model BY85
Digging depth
 2621 mm | 103.2 in.
Loading height
 2347 mm | 92.4 in.
Backhoe reach
 3414 mm | 134.4 in.
Digging depth
 2621 mm | 103.2 in.
Loading height
 2347 mm | 92.4 in.
Max. leveling angle
10°
Angle of departure
21°
Backhoe reach
 3414 mm | 134.4 in.
Swing angle
180°
Bucket rotation
151°
Stabilizer spread (lowered position)
 2256 mm | 88.8 in.
Stabilizer spread (raised position)
 1737 mm | 68.4 in.
Transport overhang
 1280 mm | 50.4 in.
Transport height (max.)
 2317 mm | 91.2 in.
Compatible bucket sizes
9" backhoe bucket
Compatible bucket sizes
12" backhoe bucket
Compatible bucket sizes
16" backhoe bucket
Compatible bucket sizes
18" backhoe bucket
Compatible bucket sizes
24” backhoe bucket
Compatible bucket sizes
36" backhoe bucket
