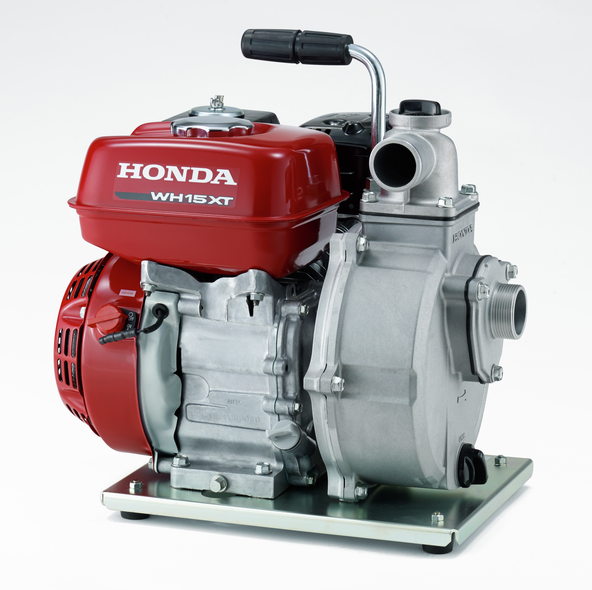

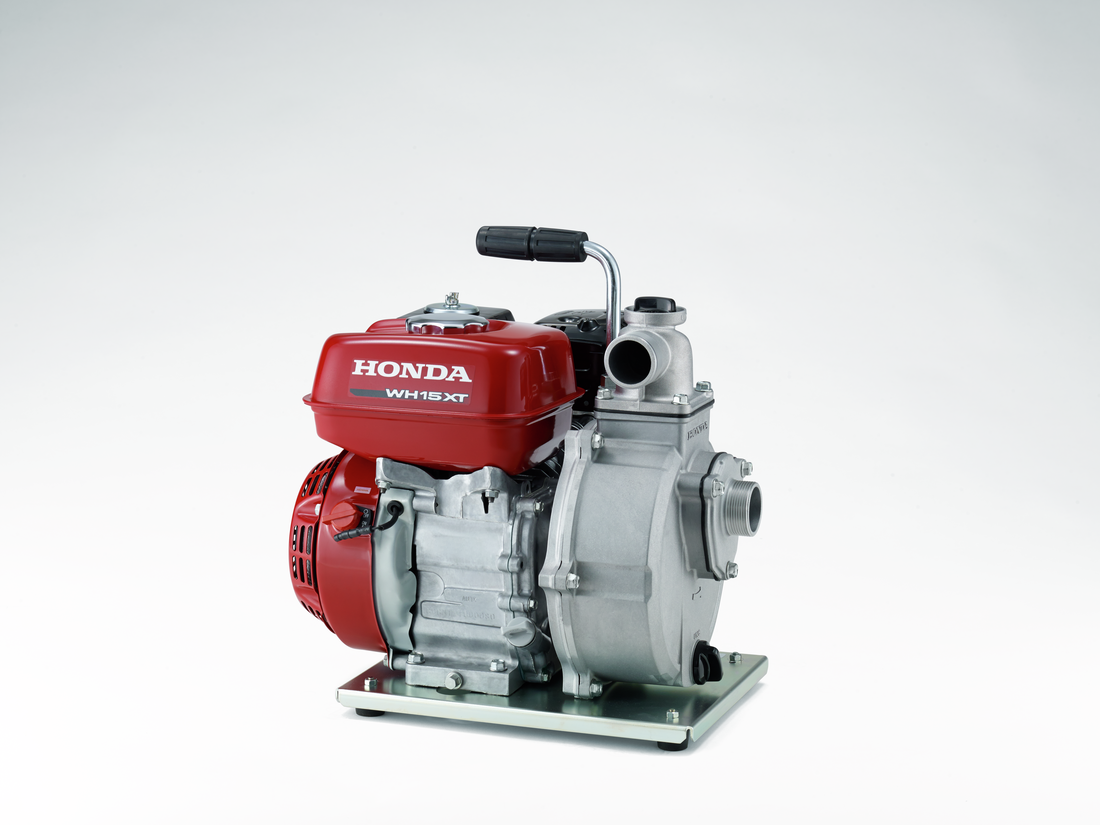

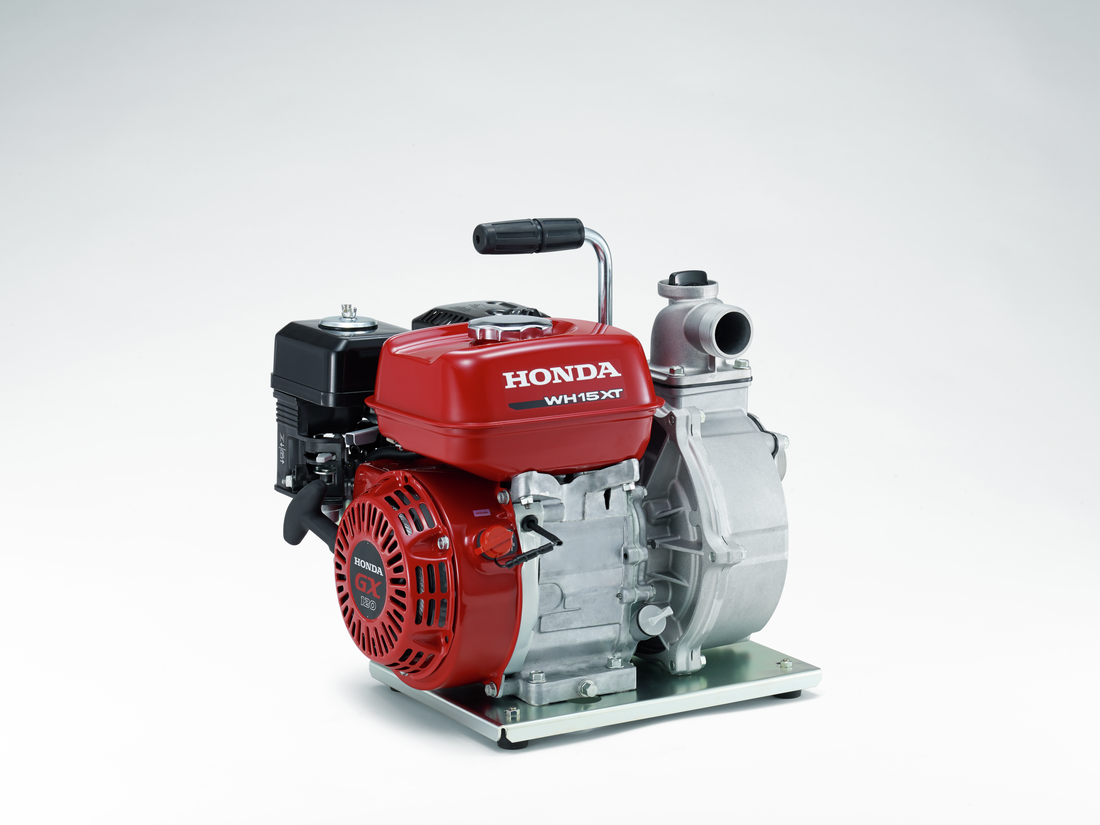

Honda WH15XT GX120 1.5" High Pressure Water Pump
Honda’s powerful WH15 is a powerful 1.5" high pressue pump with a 40m head that delivers a maximum of 370 litres per minute. With the ability to handle large volumes of clean water, the WH15 is ideally paired with sprinkers, nozzles and many other applications.
Lightweight & powerful
A portable and versatile pump, the WH15 is able to handle large volumes of water, making it ideal for sprinklers, nozzles and many other applications.
It's powered by Honda's GX120 engine, a leader of its class and the same engine that powers many of Honda's products.
Featuring a powerful 1.5" high pressure pump, a maximum suction head of 8m and a total head of 40m, it delivers up to 370 litres of water per minute.
Technology
As per the Honda standard, the WH15 starts first time, every time with Honda's famous one pull easy start system.
Being powered by a long-lasting, efficient Honda engine, you'll never have to mix oil and petrol again.
These technologies make the WH15 an environmentally friendly High Pressure Pump with low emissions, less noise and low fuel consumption.
Superior durability
The WH15 has been completely redesigned by Honda R & D for quality and durability. Improvements to the impeller, case, engine frame bed, and other pump components add to the WH15's impressive durability and performance.
Legendary pumps
The WH15 has been completely redesigned by Honda R & D for quality and durability. Improvements to the impeller, case, engine frame bed, and other pump components add to the WH15's impressive durability and performance.
| Feature | Specification |
|---|---|
| Model | |
| Model | WH15 High-Pressure Water Pump (1.5″) |
| Performance | |
| Max Pumping Capacity | 370 L/min |
| Total Head | 40 m |
| Max Suction Head | 8 m |
| Max Pressure (approx.) | ≈ 4 bar (≈ 57 psi) |
| Ports & Fittings | |
| Suction / Discharge | 40 mm (1.5″) PF/BSP thread |
| Pump Construction | |
| Pump Type | High-pressure, centrifugal, self-priming |
| Volute / Impeller | Cast iron / Cast iron |
| Mechanical Seal | Carbon/Ceramic |
| Powertrain | |
| Engine | Honda GX120 (4-stroke) |
| Displacement | 118 cc |
| Fuel Type | Unleaded 91 |
| Starting | Recoil |
| Dimensions & Weight | |
| Length | 414 mm |
| Width | 361 mm |
| Height | 414 mm |
| Dry Weight | 22.2 kg |
| Capacities | |
| Fuel Tank | 2.0 L |
| Warranty (Australia) | |
| Domestic / Commercial | 4 years* / 1 year* |
