SCAG Turf Storm XL & Turf Storm Sprayer Spreader

$34,650.00
Unit price  per

SCAG Turf Storm XL & Turf Storm Sprayer Spreader

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

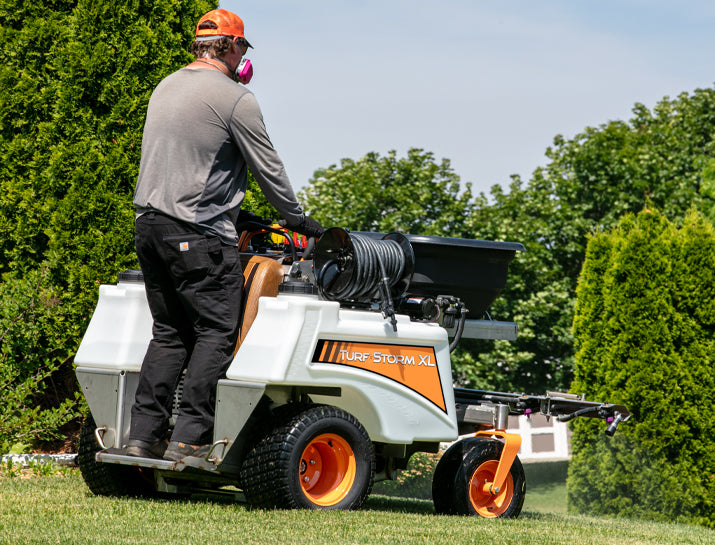

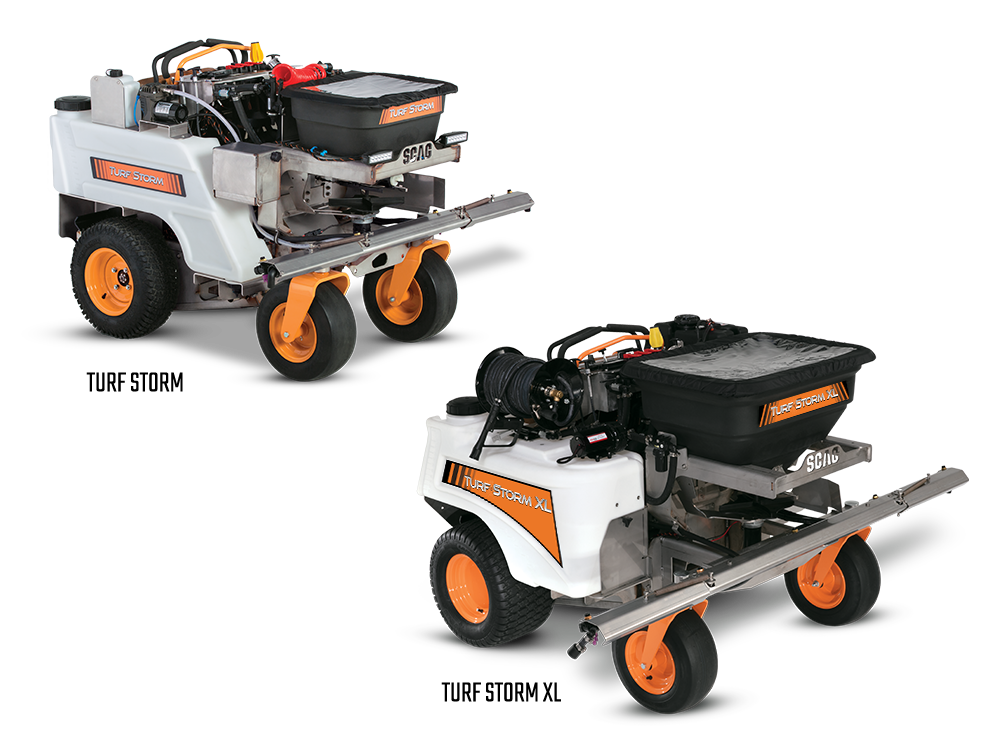

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Features

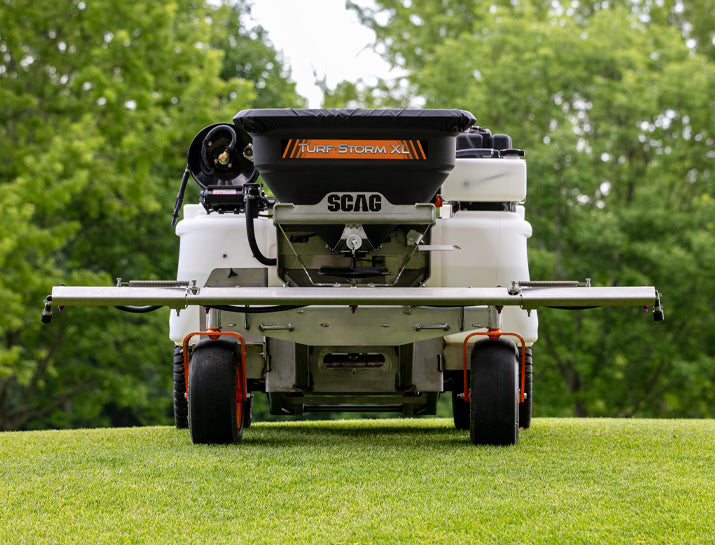

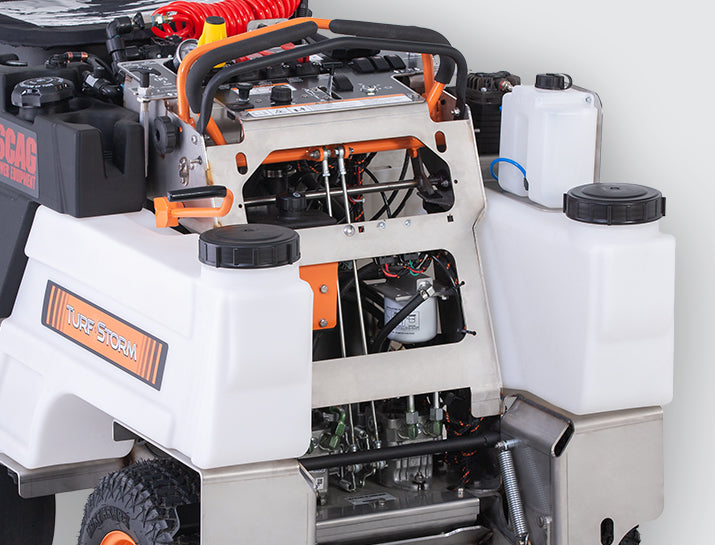

  • 60-gallon (Turf Storm XL) or 30-gallon (Turf Storm) total liquid capacity keeps you spraying longer. Highly translucent tanks with raised measurement indicators allow for accurate fill levels. Spray booms measuring 8-feet-wide with five nozzles (Turf Storm XL) or 65-inches wide (Turf Storm) allow for spraying widths of 2, 6, 8 or 10 feet (Turf Storm XL) or 2, 6 or 8 feet wide (Turf Storm). A 75-foot hose reel (Turf Storm XL) or 15-foot flex hose (Turf Storm) allows you to reach tough spaces.

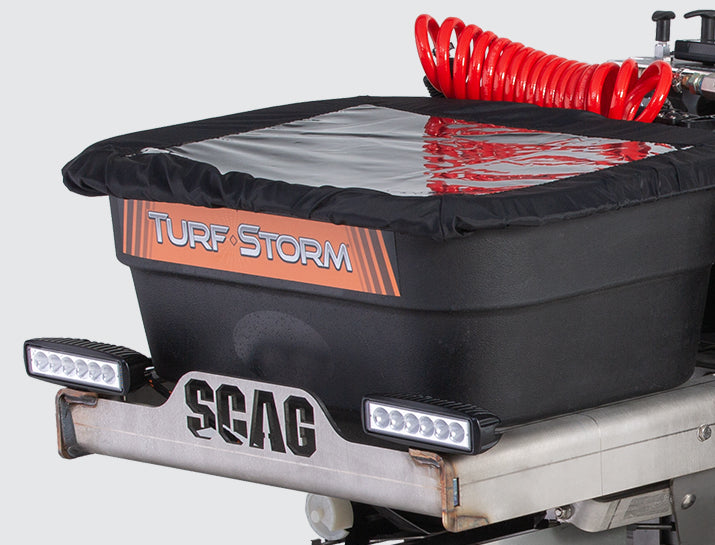

  • The 220-pound hopper (Turf Storm XL) or 120-pound hopper (Turf Storm) dry/granular capacity paired with a high-torque electric spreader motor help deliver up to a 25-foot spread width.
  • The dynamically balanced machine ensures sure footing, eliminating the need for locking front casters (Turf Storm XL only).

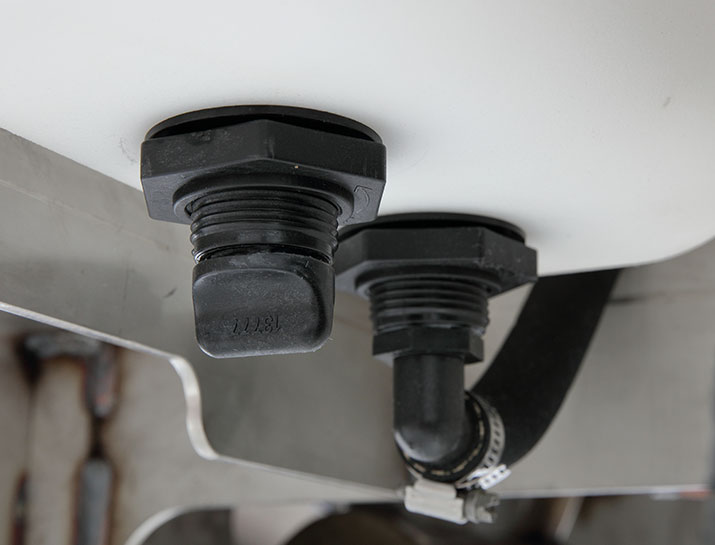

  • Drain plugs at the lowest part of the tanks allow for quick and convenient tank draining and cleaning in between the uses.

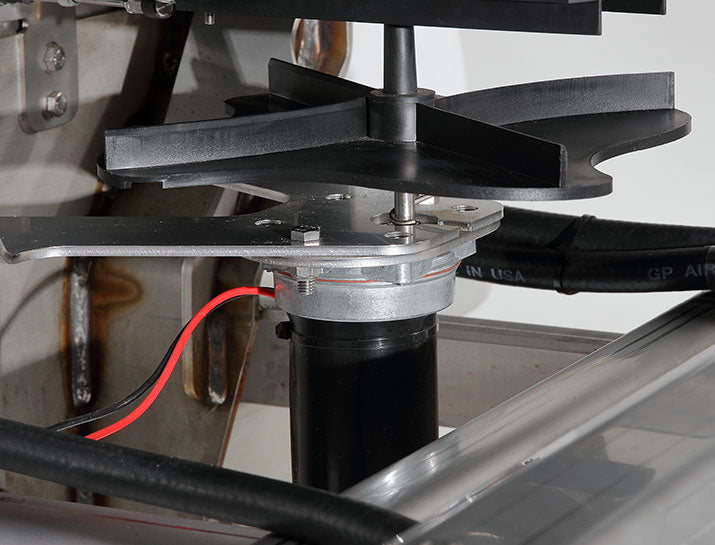

  • The high torque electric spreader motor reduces system heat when compared to hydraulic spread motors used in the market place. As a result, you can more easily control your spread pattern resulting in a more accurate application of the granular products.

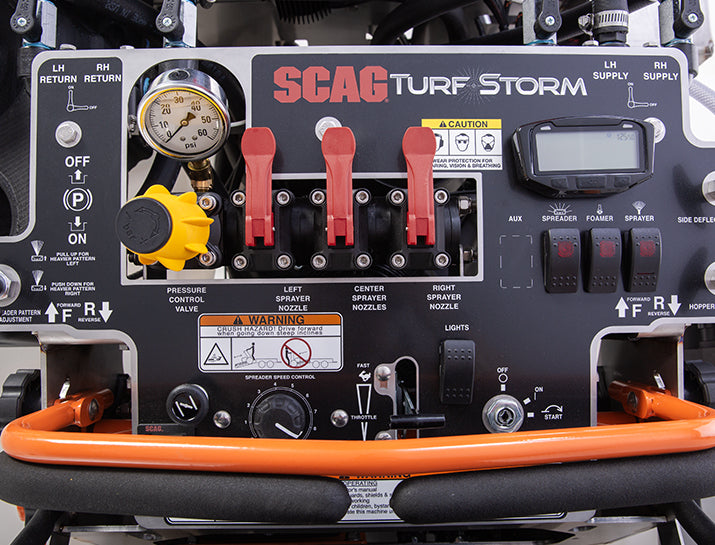

  • The ergonomic drive control lever design provides incredible ease-of-use. All the spreader and sprayer controls are within easy, fingertip reach.

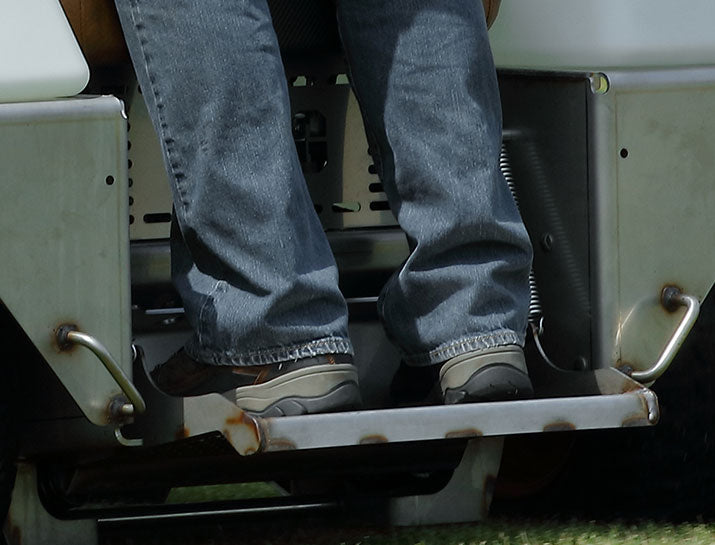

  • The spacious operator platform features an extra-large operator comfort cushion paired with coil-spring suspension for a smooth ride.

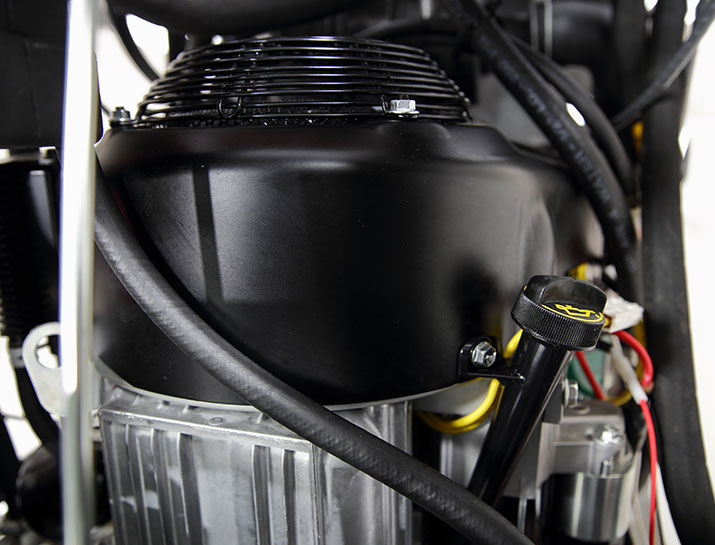

  • 23 horsepower Briggs Vanguard® engine delivers ample power, along with exceptional efficiency and dependable performance. 50-amp charging system ensures dependable spreader operation, battery life and power to accessories like 7gpm pump, Lights & Foam Marker.
  • Removable cushion and open lower area allow quick and easy service access to the hydro drive pumps, hydro reservoir and other mechanicals.
Product Specification Turf Storm XL Turf Storm
Hopper Capacity 220 lb 120 lb
Spreader Motor High-Torque Electric High-Torque Electric
Spread Width Up to 25 ft. Up to 25 ft.
Deflector Mechanical Lever Activation of Stainless Steel Door Mechanical Lever Activation of Stainless Steel Door
Hopper Cover Included Included
Product Specification Turf Storm XL Turf Storm
Spray Capacity 60-gallon; Dual 30-gallon tanks.
High visibility tanks.
30-gallon; Dual 15-gallon tanks.
High visibility tanks.
Hinged Boom Arms 8-foot wide, 5 nozzles 65-inch wide, 4 nozzles
Spray Width 2, 6, 8 or 10 ft 2, 6 or 8 ft
Breakaway Booms Standard Standard
Coil Hose Heavy duty, 75-foot high-pressure hose 15-foot flex hose
Pump Capacity 5 gpm; 7 gpm optional accessory 5 gpm; 7 gpm optional accessory
GENERAL Turf Storm XL Turf Storm
Model STS60-23BV STS30-23BV
Total Fuel Capacity 5 gallons 4.5 gallons
Front Wheel(s) 16″ x 6.5″-8″, pneumatic 16″ x 6.5″-8″, pneumatic
Rear Wheels 20″ x 12″-10″, 4-ply 20″ x 7″-10″, 4-ply
Currently Available Accessories Foamer Kit, LED Light Kit and 7 GPM pump Foamer Kit, LED Light Kit and 7 GPM pump
ENGINE
Engine Briggs Vanguardâ„¢ Briggs Vanguardâ„¢
Horsepower 23 hp 23 hp
Charging System 12 Volt, 50 Amp 12 Volt, 50 Amp
DRIVE SYSTEM
Drive System Dual Pump and Motor Dual Pump and Motor
Pumps Hydro-Gear: PG Series 10 cc Hydro-Gear: PG Series 10 cc
Motors Parker TG Series: 14.5ci Parker TG Series: 14.5ci
Ground Speed Up to 8.5 MPH forward
Up to 5 MPH reverse
Up to 8.5 MPH forward
Up to 5 MPH reverse
Parking Brake Hand Lever Hand Lever
DIMENSIONS
Length 67″ 65″
Width (spray booms in) 54″ 35.5″
Width (spray booms out) 82″ 65″
Height 50″ 50″
Weight (dry) 965 lb 859 lb
